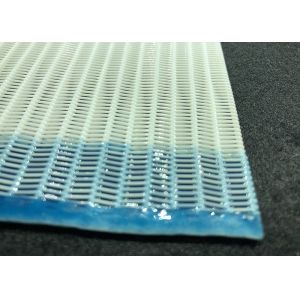

Wrapping Paper Linerboard Mesh Variety Designed According To
Functions Polyester Conveyor Belt
Polyester Mesh Belt Product Introduction
Polyester Spiral Dryer Fabrics can be used in paper making
industries we use the best
quality yarn to produce the polyester forming fabric so our product
can be used
very long usage time . Our factory is the direct factory of
producing all kinds of
polyester fabrics for many years , our factory have passed ISO
9001and SGS
quality system certificate According to standard with first-class
monofilament which makes
the polyester spiral fabric has the characteristic of stable
property and long work time
Polyester Mesh Belt Specifications
| Polyester Mesh Belt Specifications |
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength | Air Permeability |
| (mm) | (N/cm) | (m3/m2h) |
| Warp | Weft | Warp | Weft | | |
| 2-shed plain weaving fabric | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 |
| 3-shed plain weaving fabric | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 |
| 20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 |
Polyester Mesh Belt Features
| It has a variety of free shrinkling |
| It has high beaking elongation tolerance |
| It can use in filtration and sieving in varies filed |
| This fabric belt is widely used in all kinds of industries,such as
printing |
| Polyester spiral link dryer fabric belt is also used in papermaking
industry |
| Polyester spiral link dryer fabric belt with high strength |
Polyester Mesh Belt Features Advantage
1 Flat surface, not easily cracked
2 Good air permeability
3 Stable property against heat and moisture Low thermal shrinking
4 Less elongation at heat
5 Long lifespan
How to choose Polyester Mesh Belt
Polyester spiral dryer fabric is made of 100% monofilament
polyesteras raw material a variety of free
shrinkling beaking elongation tolerance is available.Widly used in producing of paper
also
in filtration and sieving in varies filed Seam type: endless seam, pin seam spiral seam or
double loop seam Minimum width 10 cm Minimum length 1 m Working
temperature +150°C to -75°C in dry conditions and +70°C in wet
conditions. Seaming types
seamless, pin seaming, spiral seaming or others upon request
